Logic Gate Symbols

Exclusive Or (XOR)

1. What Does XOR Actually Mean?

Ever stumbled upon that funny-looking symbol, , in a logic problem and wondered what its all about? Well, wonder no more! This symbol represents the "exclusive or" operation, often shortened to XOR. Think of it as a slightly picky version of the regular "or."

Imagine you're deciding what to have for dinner. You could have pizza OR pasta. With a regular "or," you could even have both (if you're feeling ambitious!). But XOR is more like: you can have pizza OR pasta, but definitely NOT both. It's about exclusivity.

In the world of logic, XOR means that the result is true only when exactly one of the inputs is true. If both inputs are true, or if both inputs are false, the result is false. Its all about finding that single truth nugget.

So, essentially, asks the question: "Are these two things different?" If they are, then the answer is TRUE. If they're the same, then the answer is FALSE. Simple enough, right?

Chapter 16 Logic Programming Languages ISBN 0 321

Diving Deeper

2. The Ultimate XOR Cheat Sheet

To really understand XOR, let's peek at its truth table. This table neatly summarizes all possible input combinations and their corresponding outputs. It's basically the XOR Rosetta Stone.

Here's how it looks:
A | B | A  B------- | -------- | --------False | False | FalseFalse | True | TrueTrue | False | TrueTrue | True | False
Notice how the output is only true when A and B have different values? That's XOR in action! It's a truth-detecting machine for uniqueness.

Memorizing this little table can save you a lot of headaches down the line, especially when you're dealing with more complex logical expressions. Consider it your logical life raft.

Logic Symbols (Screencast) OER

Practical Applications of XOR

3. Where Does XOR Shine?

Okay, so you understand what XOR is. But where does it actually get used in the real world? Turns out, XOR is surprisingly versatile!

One common application is in cryptography. XOR is often used to encrypt and decrypt data because it's relatively simple and reversible. Combine a key with your data using XOR, and you've encrypted it. Apply the same key again, and you decrypt it. Pretty neat, huh?

XOR is also used in error detection and correction, particularly in RAID (Redundant Array of Independent Disks) systems. It helps to detect and recover from data corruption on hard drives. Think of it as the digital superhero keeping your precious files safe.

Beyond that, XOR finds its way into digital circuits, image processing, and even some types of artificial intelligence. It's a fundamental building block for many technologies we use every day. So, next time you binge-watch your favorite show, remember that XOR might be playing a tiny role behind the scenes!

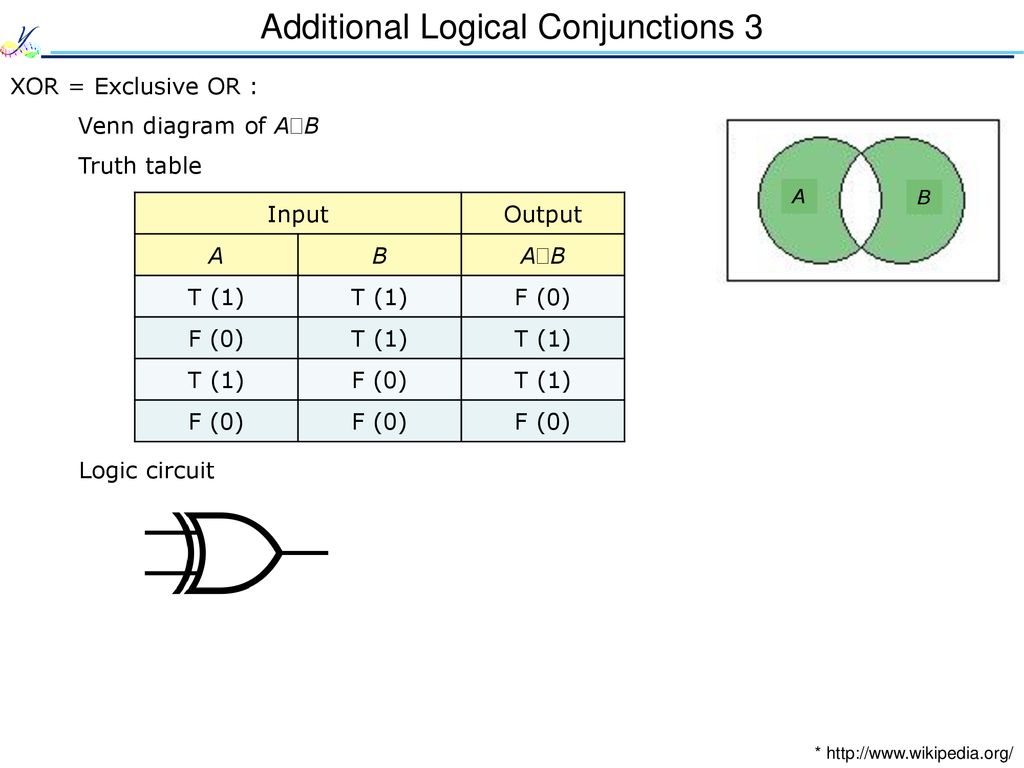

Information Storage And Spintronics Ppt Download

XOR vs. Other Logical Operators

4. Understanding the Family

XOR is just one member of the logical operator family. Let's quickly compare it to some of its relatives like AND, OR, and NOT.

AND (∧) requires both inputs to be true for the output to be true. OR (∨) only needs one input to be true. NOT () simply flips the input (true becomes false, and vice versa).

What makes XOR special is its exclusivity. It's not satisfied with just any truth; it demands a single, solitary truth. It's like the picky eater of logical operators.

Knowing the differences between these operators is crucial for building complex logical expressions. Think of them as ingredients in a recipe — each one contributes a unique flavor to the final dish.

A Schematic Illustration Of The OR And XOR Logical Operation To Extract

Common Misconceptions about XOR

5. Clearing Up the Confusion

Even though XOR is a relatively simple concept, it's easy to get tripped up on a few common misconceptions. Let's bust a few of those myths right now.

One common mistake is confusing XOR with the regular "or." Remember, XOR is exclusive! If both inputs are true, XOR gives you a big, fat false.

Another misconception is that XOR is the same as "not equal to." While they often produce the same results, they're conceptually different. XOR is a logical operation, while "not equal to" is a comparison operation.

Finally, some people think XOR is only useful in computer science. While it's certainly important in that field, XOR has applications in other areas as well, such as mathematics and even game theory. It's more versatile than you might think!

What Is Logic And Its Types Design Talk

FAQ

6. Frequently Asked Questions

Still have questions about XOR? Here are some frequently asked questions to help you on your way:

Q: Is XOR associative?

A: Yes, XOR is associative, meaning (A B) C is the same as A (B C). This allows you to XOR multiple values together without worrying about the order.

Q: Can XOR be used with more than two inputs?

A: Yes, XOR can be extended to more than two inputs. In this case, the output is true if an odd number of inputs are true.

Q: What's the XOR of a value with itself?

A: The XOR of a value with itself is always false. This is because both inputs are the same (either both true or both false), and XOR requires them to be different.

Q: How is XOR used in cryptography in simple terms?

A: Imagine you have a secret message (your data) and a key. You XOR each bit of your message with a corresponding bit of your key. This scrambles the message (encrypts it). To read the message, you XOR the encrypted message with the same key again, and voila, your original message reappears!
